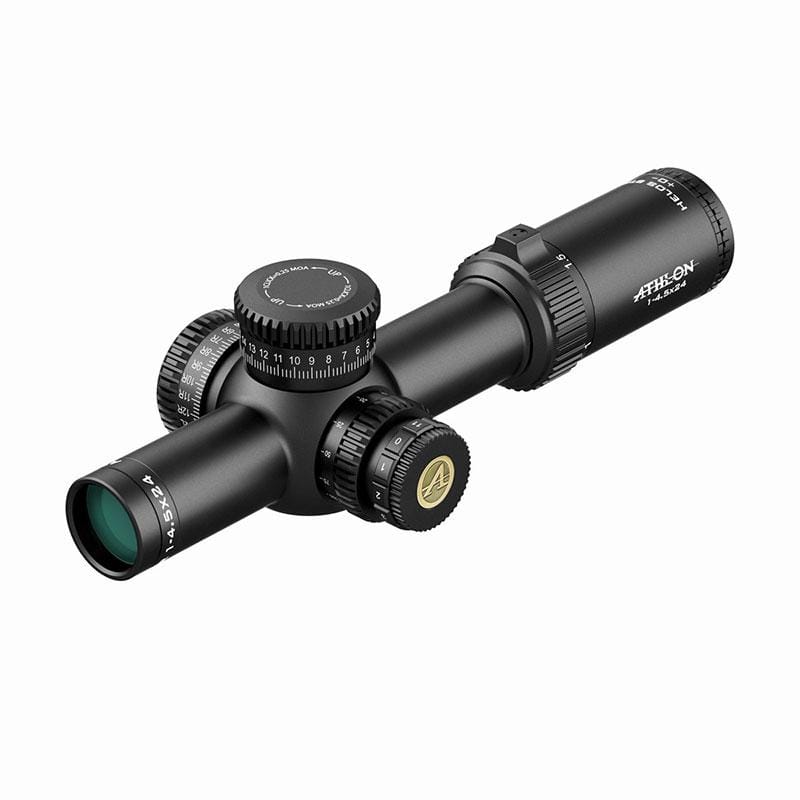

Athlon Helos BTR 1-4.5x24 SFP Riflescope (ATSR3 IR Reticle)
The Athlon Helos BTR 1-4.5x24 SFP Riflescope is specially designed for service rifle matches and other short and mid range applications.
Built with advanced fully multicoated optics that produce bright, clear images, your 24mm scope has a 30mm heat treated one piece tube that's durable and has a robust shockproof design. It’s waterproof and fog-roof meaning you can rely on it even in damp conditions.
A glass etched illuminated second focal place reticle allows you to get right on target every time and is easy to see even in low light situations such as dawn and dusk.
The scope is loaded with robust turrets that have 23 MOA travel-per-rotation, true zero stop and revolution locking feature, and fully multi-coated lenses. The revolution locking feature limits the Up Adjustment of your elevation turret within one revolution from your zero position, while still providing total 23 MOA adjustment that is more than enough for your target at 600 yard. This feature eliminates any second-guessing you might have on which turn you are at on your elevation turret.

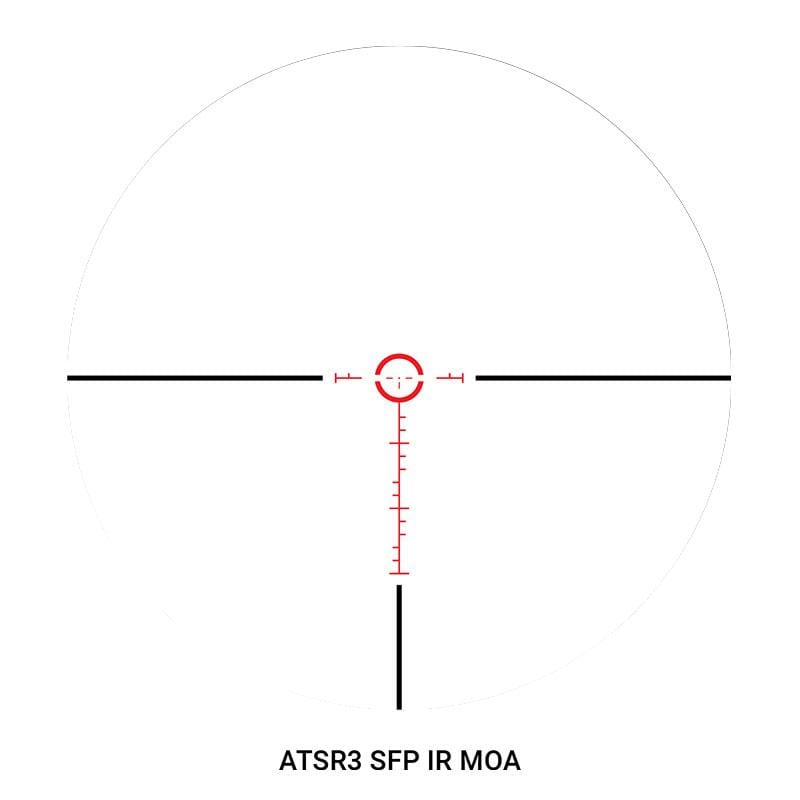

The ATSR3 reticle is specially designed for the service rifle matches with the centre circle at right size that fits most of your targets and the centre dot for precision and horizontal line for wind hold over.
Athlon Helos BTR 1-4.5x24 SFP Riflescope (ATSR3 IR Reticle)
- Second focal plane reticle
- Illuminated reticle increases visibility in low light
- Etched glass reticle provides great durability and much higher shock resistance to recoil
- Advanced fully multicoated optics increase light transmission for brighter images
- 6061 T6 Aluminium construction offers exceptional strength and superior mechanical integrity
- Revolution Lock
- Precision zero stop
- One piece heat treated tube gives extra strength
- Waterproof and fog proof thanks to argon purging
- Shockproof to withstand 1000G recoil for 1000 times
- Magnification - 1-4.5x
- Objective lens diameter - 24mm
- Lens coating - Wide band fully multicoated
- Extra coating - Xtra Protective Coating
- Tube material - 6061 Aluminium
- Tube diameter - 30mm
- Exit pupil - 12.2-5.2 mm
- Eye relief - 3.2”
- Field of view @100 yards - 100-22 ft
- Waterproof - Yes
- Purging material - Argon
- Length - 9.5”
- Weight - 649g / 22.9oz
ATSR3 IR Reticle:
- Click value - 0.25 MOA
- Adjustment range per rotation - 23 MOA
- Total elevation adjustment - 23 MOA
- Total windage adjustment - 80 MOA
- Turret style - Exposed
- Parallax adjustment - Side focus - 10 yds to infinity
