Kowa TSN-EX16 1.6x Spotting Scope Eyepiece Extender

Kowa TSN-EX16 1.6x Spotting Scope Eyepiece Extender

Kowa SKU: KWTSN-EX16
Price
Regular price $69499
Regular price Sale price $69499
Save $-694.99
/
  • $13.99 Standard Shipping
  • All prices in AUD
  • Authorised Australian Retailer
  • Secure payments
OZ Warranty - Lifetime
Shipping calculated at next step (Standard $13.99 shipping unless rural or multiple items)

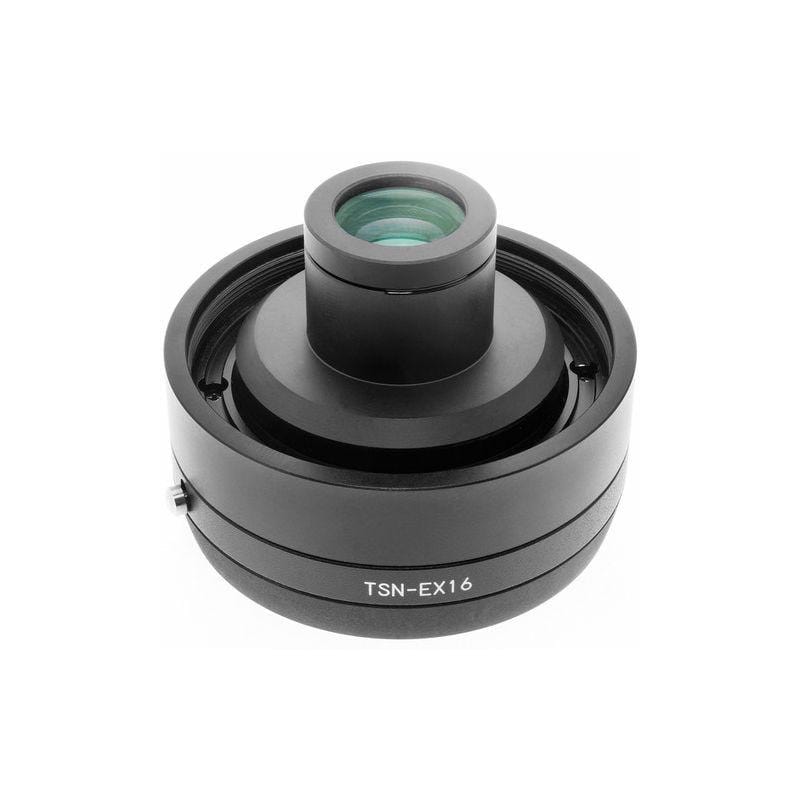

The Kowa TSN-EX16 1.6x Eyepiece Extender is especially designed or use with Kowa TSN-880 and TSN-770 spotters.

This extender easily fits between the your Kowa scope body and eyepiece to increase the magnification by a factor of 1.6x with virtually zero light loss.

Quick and easy to install without tools or permanent-modification, all you need to do is unscrew the scope ring from the body of your spotting scope and thread the extender in its place. A matching bayonet-mount then accepts the eyepiece.

A ring on the extender comes off allowing you to use with digiscoping adapters. Made to match the colour and form of the eyepiece, it blends seamlessly with your scope's aesthetics and its compact form-factor allows it to be used on straight and angled-viewing models.

Kowa TSN-EX16 1.6x Spotting Scope Eyepiece Extender

Features:


Specifications when used with Kowa TE-11WZ Prominar 25-60x Wide Zoom Eyepiece at 25x magnification:

  • Magnification - 40x
  • Real field of view - 1.5°
  • Exit pupil - 1.9-2.2mm
  • Twilight factor - 55.5-59.3
  • Field of view at 1000m - 26m


Specifications when used with Kowa TE-11WZ Prominar 25-60x Wide Zoom Eyepiece at 60x magnification:

  • Magnification - 96x
  • Real field of view - 0.82°
  • Exit pupil - 0.8-0.9mm
  • Twilight factor - 86.1-92.1
  • Field of view at 1000m - 14m


Specifications when used with Kowa TE-20H 25x LER (Long Eye Relief) Eyepiece:

  • Magnification - 40x
  • Real field of view - 1.3°
  • Exit pupil - 1.9-2.2mm
  • Twilight factor - 55.5-59.3
  • Field of view at 1000m - 26m


Specifications when used with Kowa TSN-VA3 High Resolution Video Digiscoping Adapter for TSN-880 and TSN-770 Spotting Scopes:

  • Magnification - 23x
  • Real field of view - 1.8°
  • Exit pupil - 3.5-4mm
  • Twilight factor - 41.1-44
  • Field of view at 1000m - 32m
