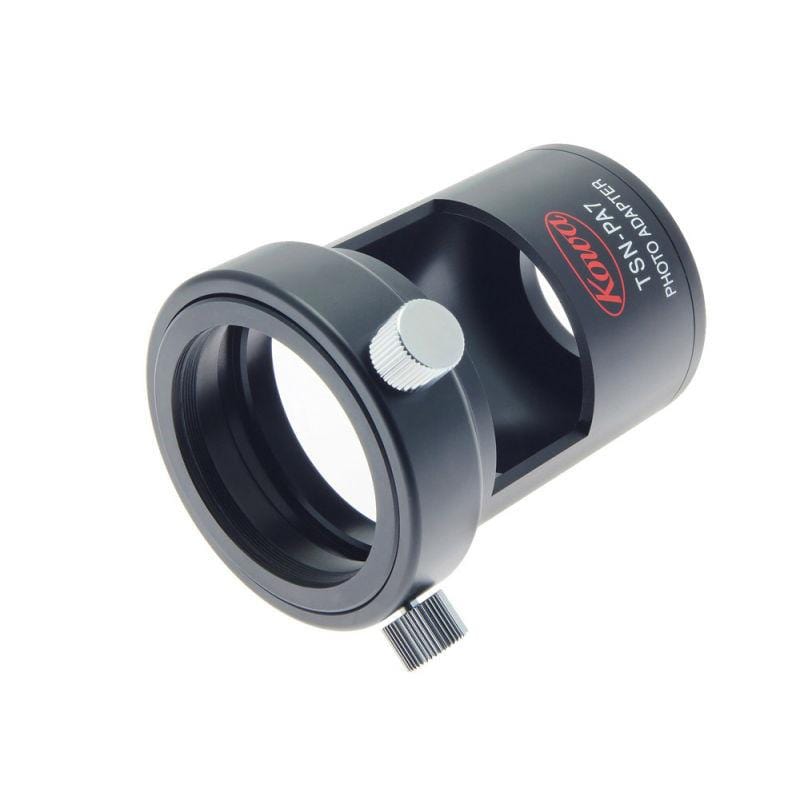

Kowa TSN-PA7 DSLR Digiscoping Adapter TSN-880 and TSN-770 Spotting Scopes

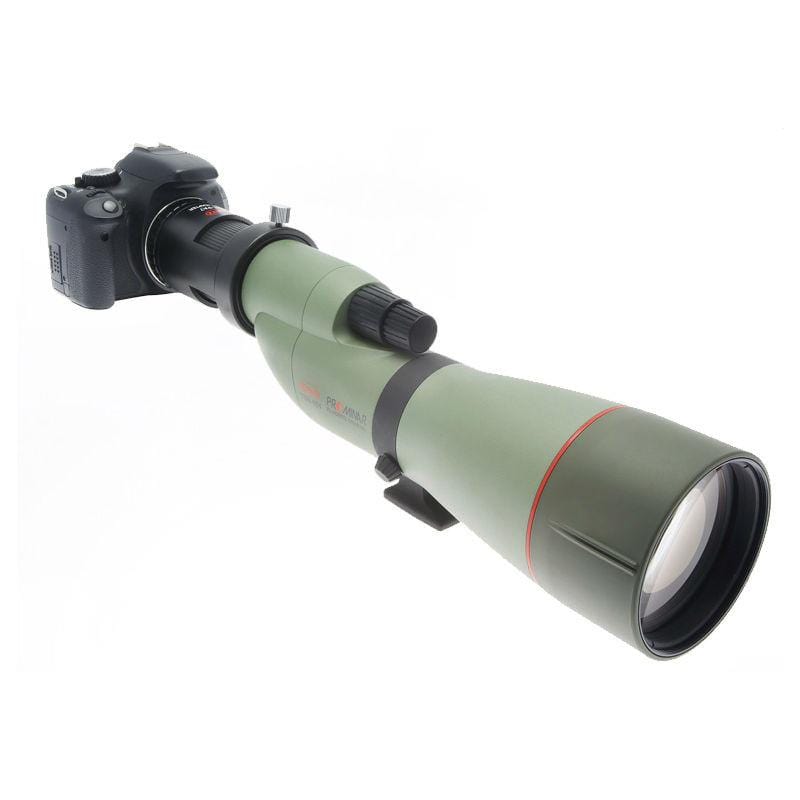

The Kowa TSN-PA7 DSLR Digiscoping Adapter attaches your DSLR camera body directly to the body of your Kowa TSN-880 or a TSN-770 Spotting Scope via a T2 mount, transforming your scope into an extremely high powered telephoto lens for you DSLR, or Mirrorless/MFT camera.
In contrast to conventional digiscoping, where the image produced by the spotting scope eyepiece is photographed, the TSN-PA7 connects your camera body directly to the body of the scope via a T2 mount, without the need for an additional, special digiscoping eyepiece. This great set up allows you to harness the full zoom range of your scope's eyepiece, creating a high powered, yet lightweight and compact telephoto lens, when compared to traditional telephoto lenses.
Designed for use with the standard Kowa zoom eyepieces commonly used with 88mm and 77mm Kowa spotting scopes, this adapter gives you up to 2570mm of focal length when used with the TE-11WZ Eyepiece and up to 2750mm of focal length with the TE-10Z Eyepiece.
Focus is achieved by using the responsive dual manual focus wheels on your scope body. Incorporating quick and ultra fine focus options, you are in full control of focusing, and the decision is yours to quickly and accurately manual focus on even the most challenging of subjects.
The excellent design of this adapter allows you to quickly attach and release your camera from your spotting scope so you can easily switch between viewing and photography modes.
If you’re looking for an digiscoping adapter that will allow you to not only experience stunningly sharp views of the world around you, but also take highly magnified, detailed and vibrant photographs and videos with your D-SLR camera, then look no further than the TSN-PA7 DSLR Digiscoping Adapter.

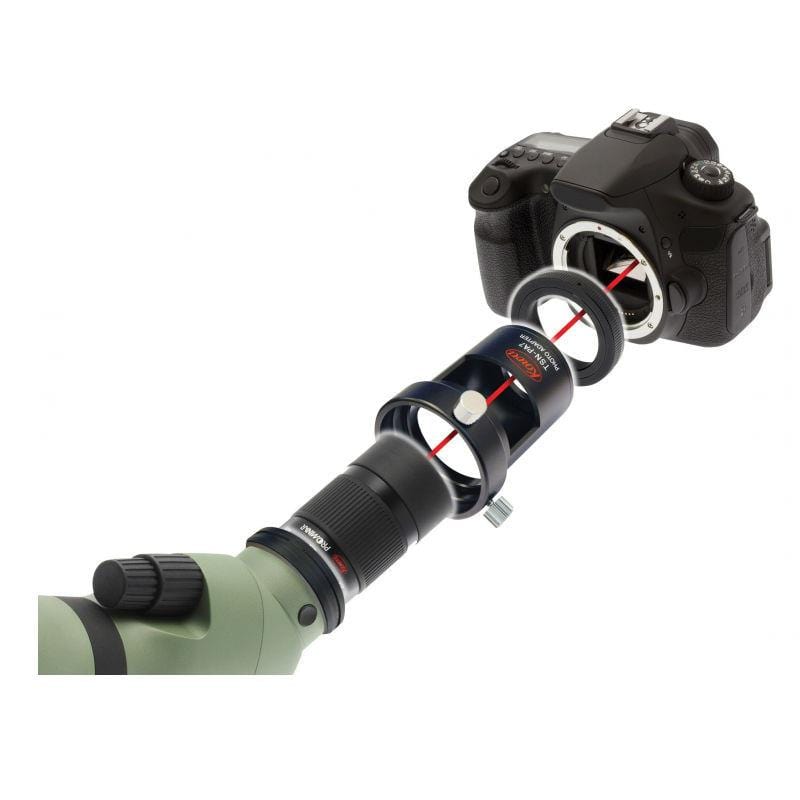

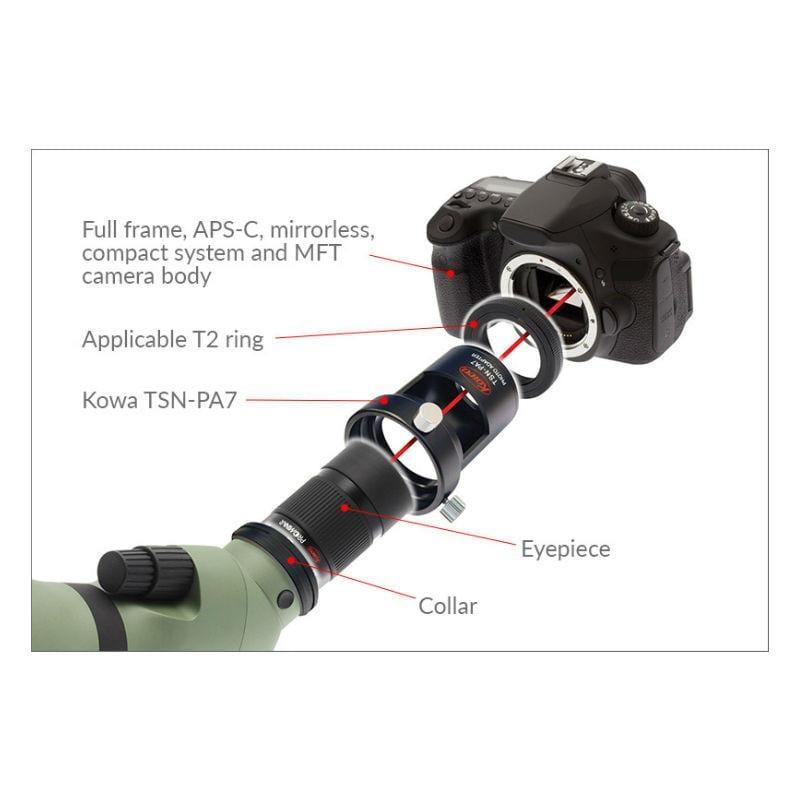

How to mount your TSN-PA7 DSLR Digiscoping Adapter:

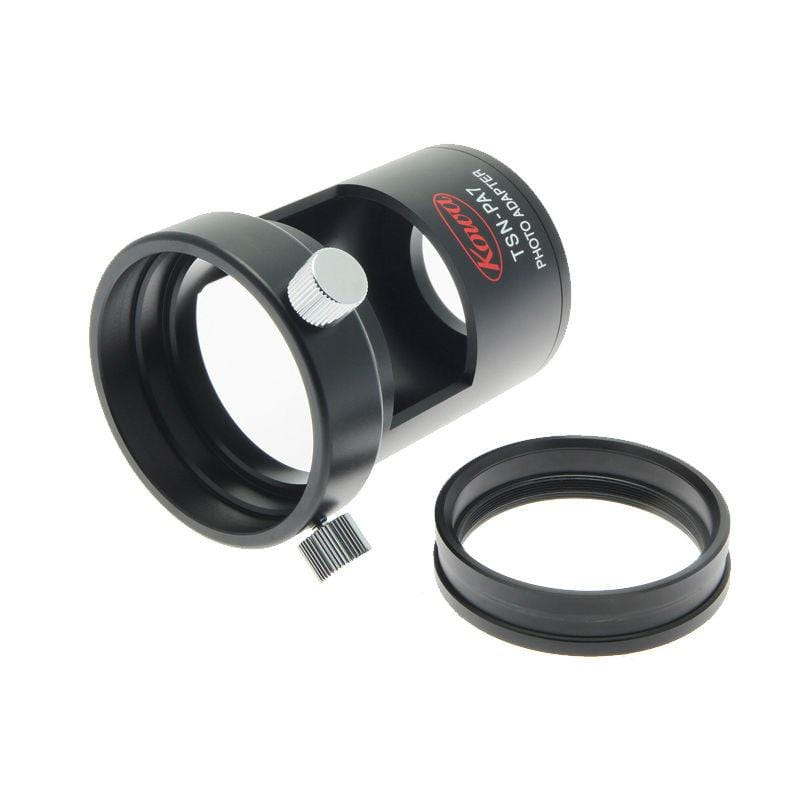

- Thread the included collar ring directly onto the body of your scope, before attaching the eyepiece
- Thread your eyepiece onto the collar
- Slide adapter over the eyepiece and lock to the collar with locking screws
- Use specific Kowa TSN-CM2 Camera Adapter T- Mount (purchased separately) to attach TSN-PA7 to camera body
Kowa TSN-PA7 DSLR Digiscoping Adapter TSN-880 and TSN-770 Spotting Scopes
- Compatible with full frame, APS-C, mirrorless, compact system and MFT camera bodies
- Designed for use with 88mm and 77mm spotting scopes with either the TE-11WZ or TE-10Z Eyepiece
- Requires additional Kowa TSN-CM2 Camera Adapter T- Mount
- Simply slides over the eyepiece and secures to a scope body via a collar
- The focal length is up to 2570mm when used with the TE-11WZ Eyepiece
- The focal length is up to 2750mm when used with the TE-10Z Eyepiece
- Maintains the full zoom range of your eyepiece
- Weight - 204g
Unsure what digiscoping equipment you need for your camera and spotting scope? Use this handy chart to figure out your requirements.
