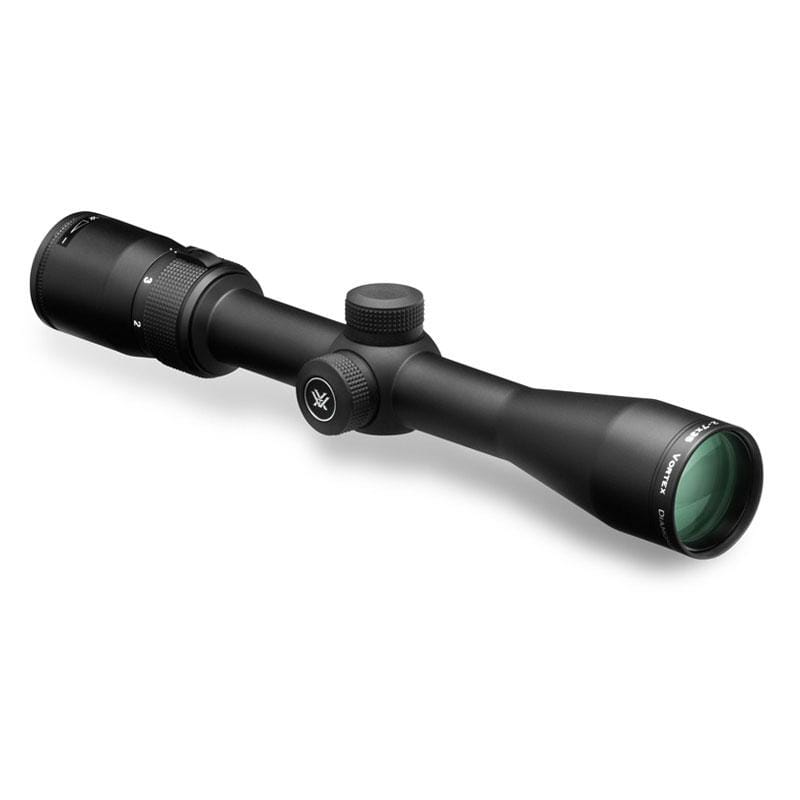

Vortex Diamondback 2-7x35 Rimfire Riflescope with V-Plex Reticle
The Vortex Diamondback 2-7x35 Rimfire Riflescope with V-Plex Reticle is virtually indestructible and highly resistant to magnum recoil.
Built to withstand all the field has to throw at it, your Diamondback rimfire scope from Vortex has a solid one-piece aircraft-grade aluminium alloy construction that's Argon purged to make it waterproof and fogproof.
The mid-sized 35mm lens and fully multi-coated optics will make you raise a brow when they produce crystal clear, tack-sharp images, even in low light.
Your Diamondback 2-7x35 Rimfire has a 50-yard parallax setting which makes it ideal for use at close range on 22 rimfire, shotguns and muzzleloaders. It comes in a V-Plex reticle which is the single best all-purpose hunting reticle intended for a wide variety of hunting applications
If you’re looking for a quality riflescope that won’t break the bank, then look no further than the 2-7x Rimfire Diamondback from Vortex.
Vortex Diamondback 2-7x35 Rimfire Riflescope with V-Plex Reticle
- Fully multi-coated lenses increases light transmission

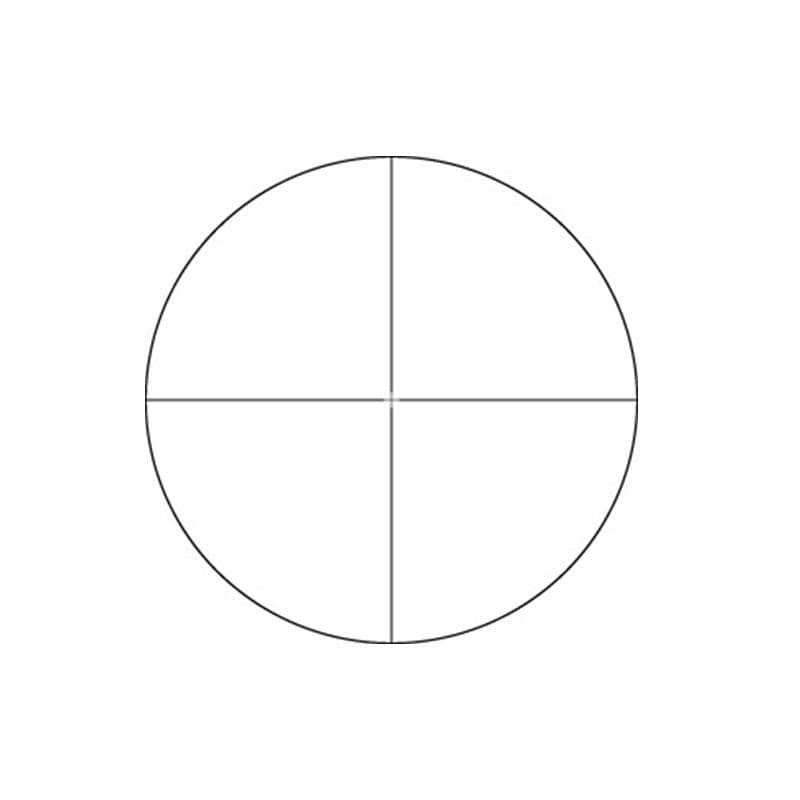

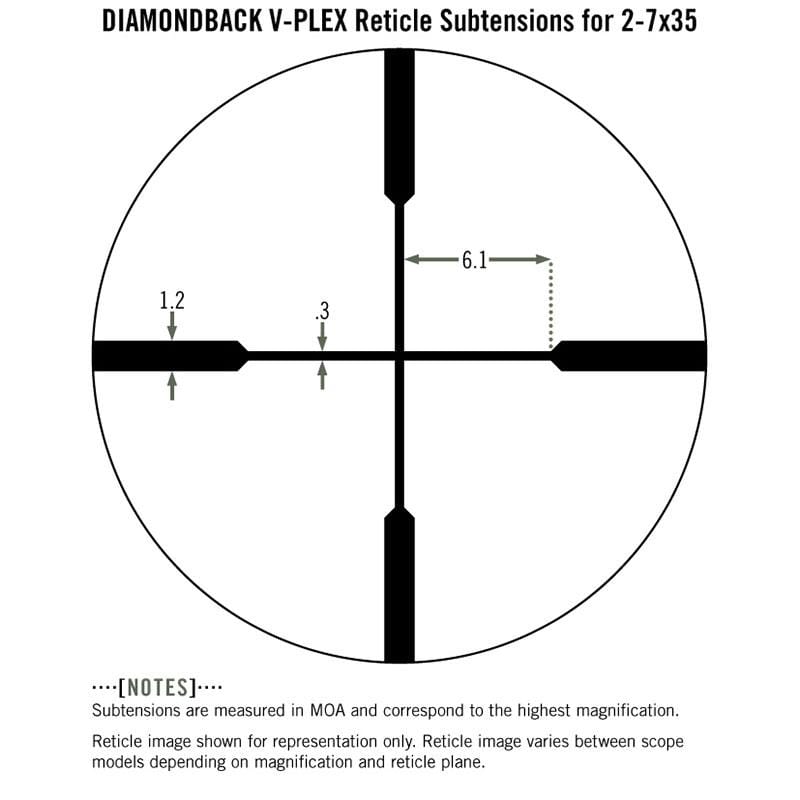

- Second focal plane reticle maintains the same ideally-sized appearance at all magnifications
- 1 inch tube diameter
- Single-piece aircraft-grade aluminium tube for strength and rigidity
- Waterproof and fogproof
- Hard anodised durable low-glare matte finish helps camouflage your position
- Precision-Glide Erector System to ensure smooth magnification changes under the harshest conditions

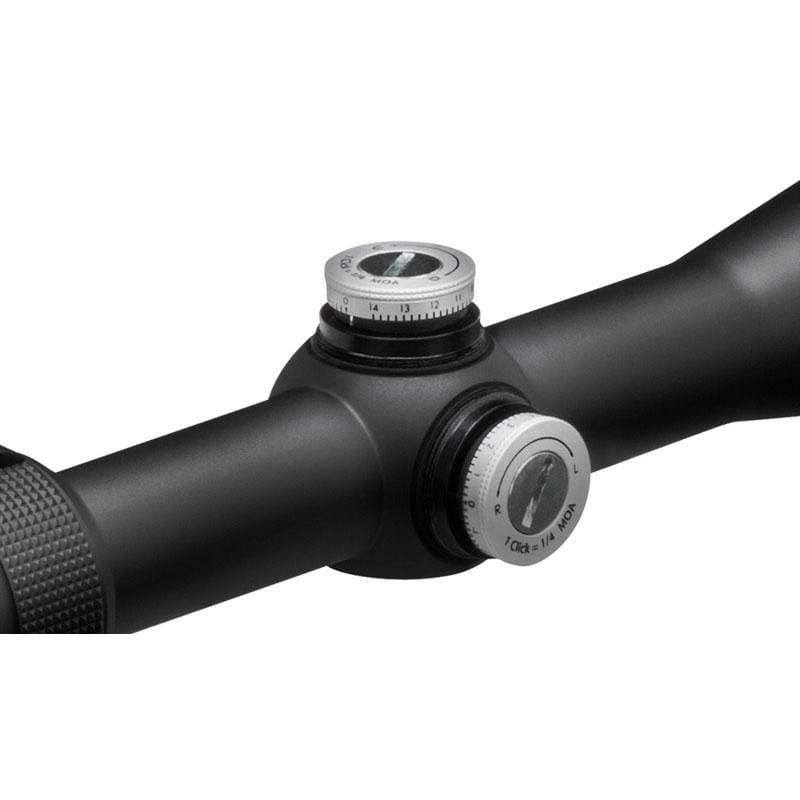

- Capped reset turrets allow re-indexing of the turret to zero after sighting in the riflescope
- Fast focus eyepiece allows quick and easy reticle focusing
- Designed for rimfire use
- Magnification - 2-7x
- Objective lens diameter - 35mm
- Eye relief - 3.1 inches
- Field of view - 64.3-19.3 feet/100 yards
- Tube size - 1 inch
- Turret style - Capped
- Adjustment graduation - 1/4 MOA
- Travel per rotation - 15 MOA
- Max elevation adjustment - 100 MOA
- Max windage adjustment - 100 MOA
- Parallax setting - 50 yards

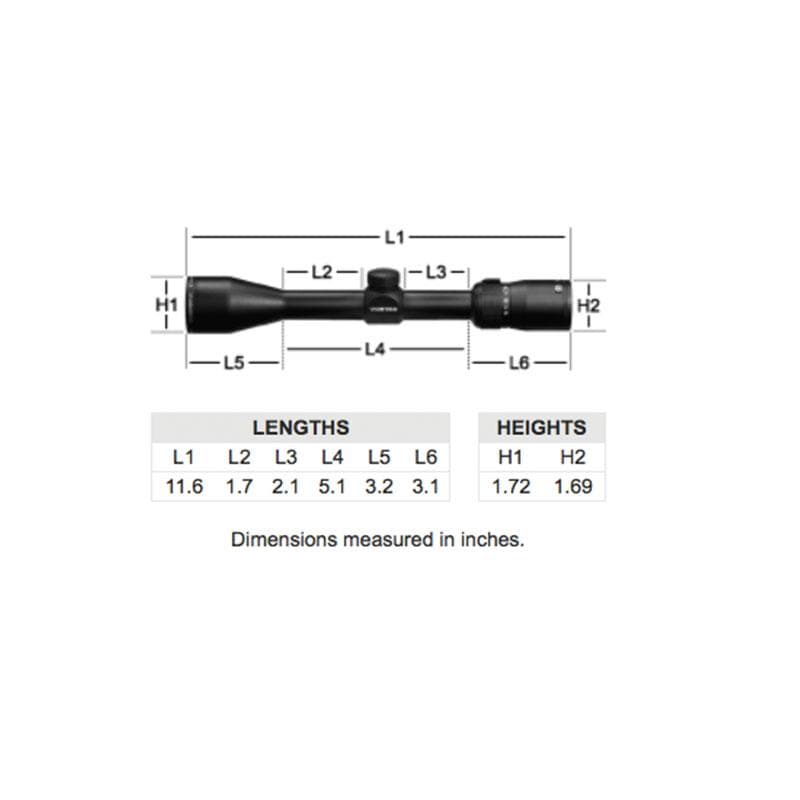

- Length - 11.6 inches
- Weight - 400g / 14.2 ounces
Download the Instruction Manual.
