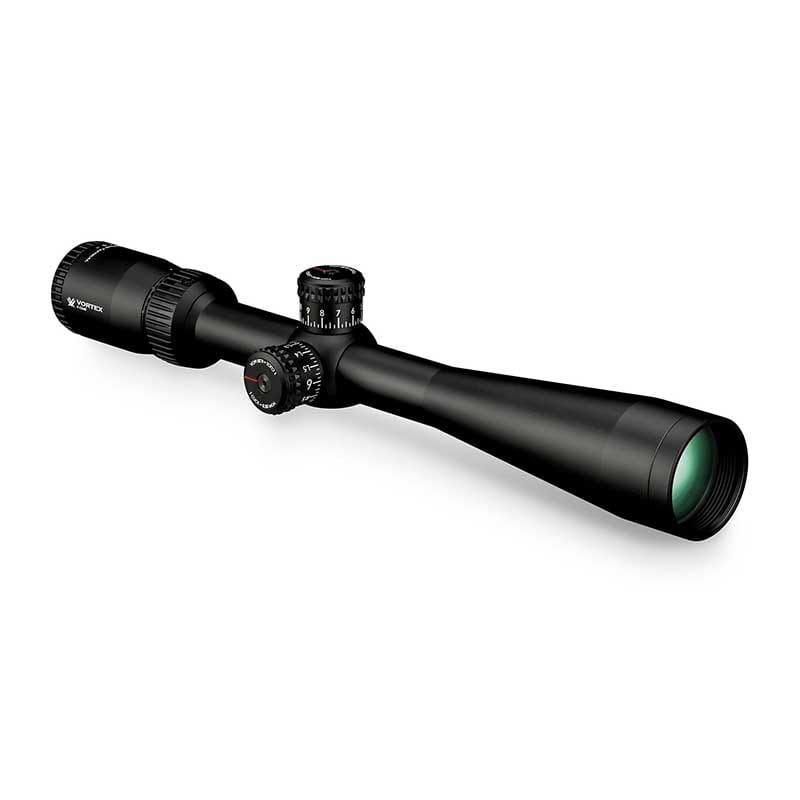

Vortex Diamondback Tactical 4-12x40 Riflescope (VMR-1 MOA Reticle)
The Vortex Diamondback Tactical 4-12x40 Riflescope (VMR-1 MOA Reticle) is designed to offer exceptionally precise shots thanks to its exposed tactical turrets that are built for accurate elevation and windage dialling.

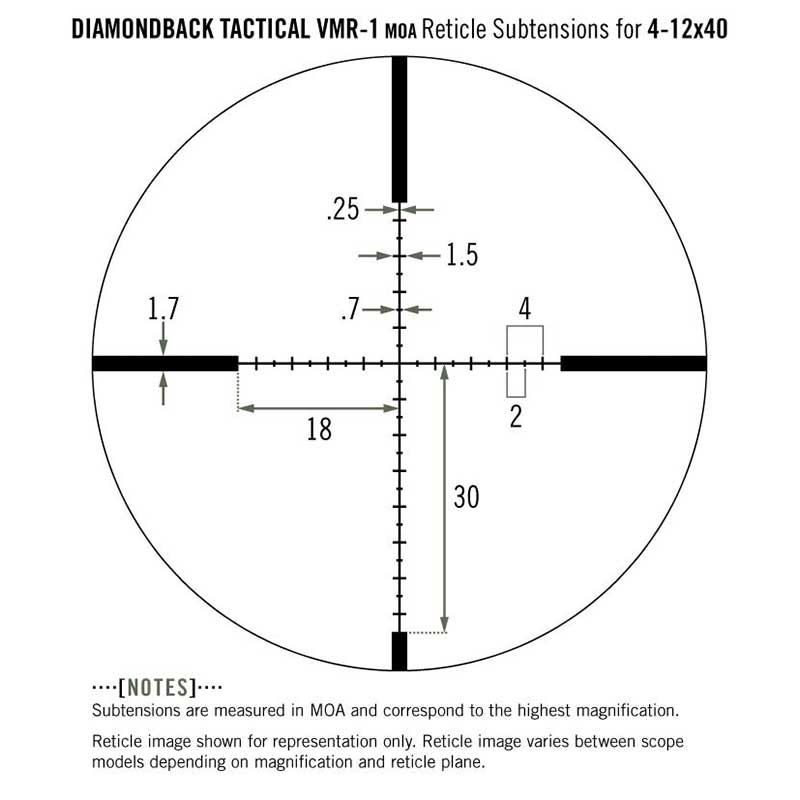

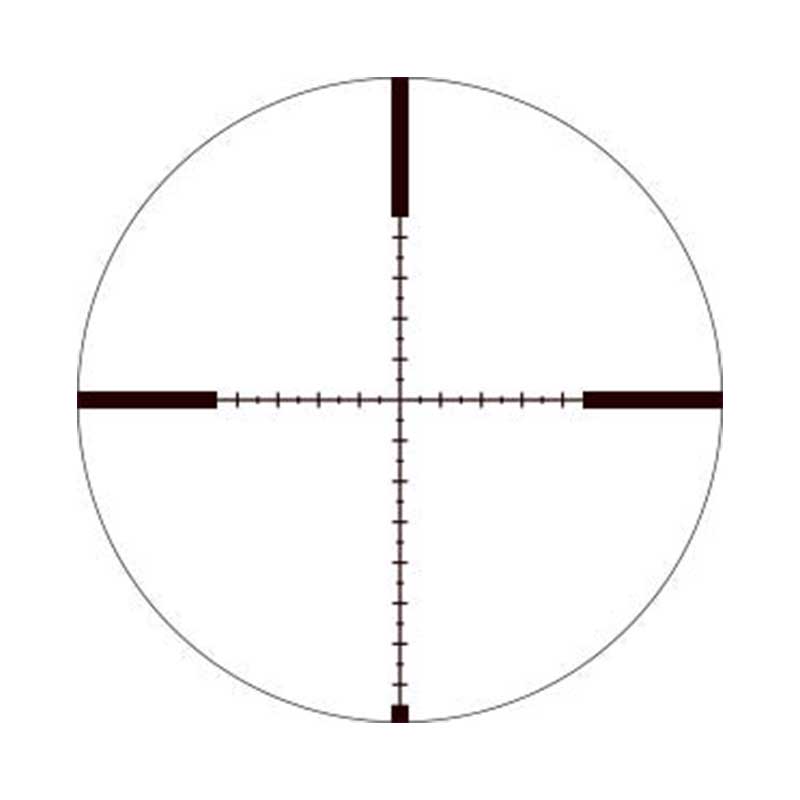

Built with a second focal plane VMR-1 Reticle, your Diamondback Tactical scope is designed to maximise long distance shooting and ranging abilities and can be used to effectively determine ranges, holdovers, windage corrections and moving target leads. These features make it great for target shooting and hunting alike.
Extra low dispersion glass and fully multicoated lenses allow your Diamondback Tac to produce bright, clear and sharp images even in low light.
A zero-reset feature lets you re-index the zero reference marks on both turrets after sight in, while fibre optic rotation indicators integrated into the turrets provide a visual cue of your turret’s position.
As you’d expect from Vortex, your Diamondback 40mm scope is waterproof and fog proof so that you rely on it in the field.
If you’re looking for a mid range magnification scope that’s accurate and reliable then look no further than the Diamondback 4-16x40 second focal plane scope from Vortex.
Vortex Diamondback Tactical 4-12x40 Riflescope (VMR-1 MOA Reticle)
- Extra-low dispersion lenses
- XR™ fully multi-coated proprietary coatings
- Second focal plane reticle maintains the same ideally-sized appearance at all magnifications
- 1 inch diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications
- Aircraft-grade aluminium for strength and rigidity
- Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments
- Nitrogen gas purging prevents internal fogging
- Shockproof construction withstands recoil and impact
- Highly durable hard-coat anodisation provides a low-glare matte surface and helps camouflage the shooter's position
- Precision-glide erector system ensures the components in the zoom lens mechanism glide smoothly and cleanly through all magnification ranges
- Exposed tactical-style turrets provide fast, accurate and easily read elevation and windage adjustments
- Fast focus eyepiece allows quick and easy reticle focusing
- Radius bar fibre optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations
- Magnification rib on ring facilitates fast magnification changes in the heat of action
Magnification - 4-12x
Objective lens diameter - 40mm
Eye relief - 3.9 inches
Field of view - 23.6-7.9 ft/100 yds
Tube size - 1 inch
Turret style - Tactical
Adjustment graduation - 1/4 MOA
Travel per rotation - 12 MOA
Max elevation adjustment - 70 MOA
Max windage adjustment - 70 MOA
Parallax setting - 100 yards
Length - 14.08 inches
Weight - 459g
